Home Electrical Panels Upgrade for EV Charging: A Step-by-Step Guide

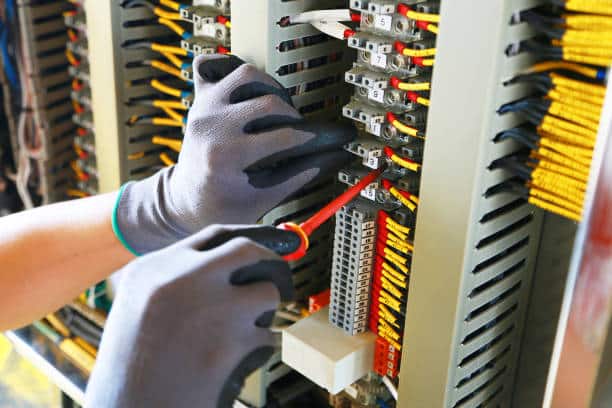

electrical service panel bellevue wa

With the growing popularity of electric vehicles (EVs), homeowners often need to upgrade their electrical boards to accommodate EV charging stations. This step-by-step guide will take you through upgrading your home’s electrical panels for EV charging, ensuring you have the capacity and safety required for efficient charging.

1. Assess Your Current Circuit Panel

Begin by evaluating your existing panel’s capacity, age, and condition. Determine whether it can support the additional load from an EV charger.

2. Calculate Your Charging Needs

Understand the charging requirements of your EV. Different EVs have varying charging speeds, so calculate the capacity needed to ensure efficient charging.

3. Consult an Electrician

Engaging a licensed electrician with expertise in EV charger installations is crucial. They will assess your circuit board and recommend necessary upgrades.

4. Determine the Panel Upgrade Type

Depending on your existing panel’s capacity, you may need a service panel upgrade or a subpanel installation dedicated to the EV charger. Your electrician will help you make this decision.

5. Obtain Necessary Permits

Before upgrading, obtain any required permits from your local authorities. Compliance with local building codes is essential.

6. Disconnect Power

For safety reasons, your electrician will disconnect power to the existing panel before beginning any work.

7. Remove the Existing Panel

If a service panel upgrade is necessary, the old panel will be removed, making space for the new, higher-capacity board.

8. Install the New breaker Board

The upgraded or new circuit breaker board is installed, with the capacity needed for EV charging. It’s crucial to ensure that all connections are secure and compliant.

9. Wiring and Circuit Installation

Dedicated circuits and wiring for the EV charger are installed and sized appropriately to handle the current and voltage requirements for fast charging.

10. Ground Fault Circuit Interrupter (GFCI) Protection

GFCI protection is installed to enhance safety. GFCIs monitor electrical circuits for ground faults, reducing the risk of electrical shock.

11. Surge Protection

Safeguard your EV charger and panel from power surges by installing surge protection devices. These protect against voltage spikes.

12. Inspection and Approval

After installation, schedule inspections to ensure the upgrades meet local building codes and safety standards.

13. Charger Installation

Once the circuit breaker upgrades are complete, the EV charger can be safely installed, following the manufacturer’s instructions.

14. Testing and Commissioning

Thoroughly test the EV charger to ensure it functions correctly and communicates with your EV.

15. Regular Maintenance

Regularly inspect and maintain your board and EV charging equipment to ensure efficient and safe operation.

16. Explore Incentives

Investigate available incentives, rebates, and tax credits for home circuit breaker board upgrades related to EV charging to maximize your savings.

Following this step-by-step guide, you can upgrade your home’s electrical panels to support EV charging. Ensuring that your electrical system has the capacity and safety measures in place is essential for a seamless and efficient charging experience. Consult with experienced electricians to ensure that the upgrades are performed correctly and safely, allowing you to enjoy the benefits of electric vehicle ownership with peace of mind.

Upgrade your home’s electrical panels for EV charging today with the experts at OutToday | Plumbing, Heating, & Electrical. Ensure efficient and safe charging with our step-by-step guide. Contact us at (425) 615-5000 to get started on your journey to electric mobility!
